Purpose-built for education and industry. All-steel construction, real specs, and the options your program actually needs.

BW Series FA Series MP Series Fume Arms Accessories
Titan BW Series Welding Booth Most Popular
Standard Welding Booth

Titan BW Series

The foundation of the Titan product line. Heavy-duty all-steel construction with adjustable legs, rear shelf, and CPAI-84 certified fire-retardant curtain. Five powder coat colors. ADA model available.

Standard Specifications — Model BW-B5575

Interior Dimensions5 ft × 5 ft × 7 ft 6 in.
Panel Steel14 gauge
Frame Steel11 gauge, 2 in. sq. tube
Brace12 gauge Reverse-T design
Rear Shelf60 × 20 in.
Leg Adjustment1 to 3 in. range
Powder Coat Colors5 standard options
CurtainCPAI-84 fire-retardant vinyl

ADA Model — BW-ADA667

Interior Dimensions6 ft × 6 ft × 7 ft
CompliantAmericans with Disabilities Act
ConstructionSame 14-ga / 11-ga steel

Available Options & Accessories

  • Fume arms and extraction hoods
  • Integrated ceiling ventilation packages
  • Welding tables (multiple heights)
  • LED work lighting fixtures
  • J-hooks for cable management
  • Custom exterior dimensions
Get a Quote on BW Series
Titan FA Series Fan Arm Welding Booth
Fan Arm Welding Booth

Titan FA Series

Same battle-tested steel booth as the BW Series — with an integrated 1.5-HP Baldor motor and hanging fume arm built in. Weld smoke goes up and out. No separate dust collector required.

Standard Specifications — Model BW-FA5575

Interior Dimensions5 ft × 5 ft × 7 ft 6 in.
Total Height (at motor)12 ft 2 in.
Motor1.5-HP TEFC NEMA (Baldor)
Airflow860 CFM at 2.0 in. SP
Electrical115/230/1/60 (single phase)
Panel Steel14 gauge
Frame Steel11 gauge, 2 in. sq. tube
CurtainCPAI-84 fire-retardant vinyl

Integrated Fume Arm — AH-0607

Diameter × Reach6 in. × 7 ft
Hood13 in. aluminum, yellow powder coat
Manual DamperIncluded
Temp Rating200°F maximum

ADA Model — BW-FAADA667

Interior Dimensions6 ft × 6 ft × 7 ft
CompliantAmericans with Disabilities Act
Get a Quote on FA Series
Titan MP Series Modular Welding Booth
Modular Panel System

Titan MP Series

The MP Series uses 2 ft and 3 ft wide modular panels that assemble into any configuration — standard or fully custom. At roughly half the weight of traditional panels, they're faster and safer to install and reconfigure.

Standard Specifications — Model BW-MP5575

Standard Size A6 ft × 5 ft 10 in.
Standard Size B5 ft × 4 ft 10 in.
Height7 ft 6 in.
Panel Steel14 gauge
Panel Widths2 ft and 3 ft modular
Weight vs. Traditional~50% lighter
Custom ConfigurationsYes — any footprint
Rear Equipment ShelfNot included (modular design)

Key Advantages

  • Easier to ship, handle, and install
  • Reconfigurable — layouts can be changed after installation
  • Ideal for irregular floor plans or phased builds
  • Same CPAI-84 curtain system as BW/FA Series
Get a Quote on MP Series
Titan AH-0607 Hanging Fume Arm
Ventilation Equipment

Hanging Fume Arm
AH-0607

Industrial-grade hanging fume arm designed for weld smoke, fume, and grind dust source capture. All external parts are accessible without removing the arm — minimal downtime, simple maintenance.

Specifications — Model AH-0607

Diameter6 in.
Length7 ft
Weight55 lbs
Hood13 in. yellow powder coat aluminum
Tube Material25 gauge steel, powder coat blue
CollarCast aluminum, 6-bolt mount
DamperManual, included
Max Temperature200°F
Recommended CFM900 CFM per drop
Recommended Duct Drop6 in. diameter
Required MountTITAN B-6 bracket

Maintenance Notes

  • All mechanical parts accessible externally — no disassembly of the arm
  • Cast aluminum collar with 6-bolt pattern for secure ceiling mount
  • Compatible with standard round duct systems
  • Works standalone or as part of FA Series booth package
Get a Quote on Fume Arms
Add-Ons & Accessories

Complete Your Lab Setup

Everything to outfit your welding program from the first booth to the last light fixture.

💡

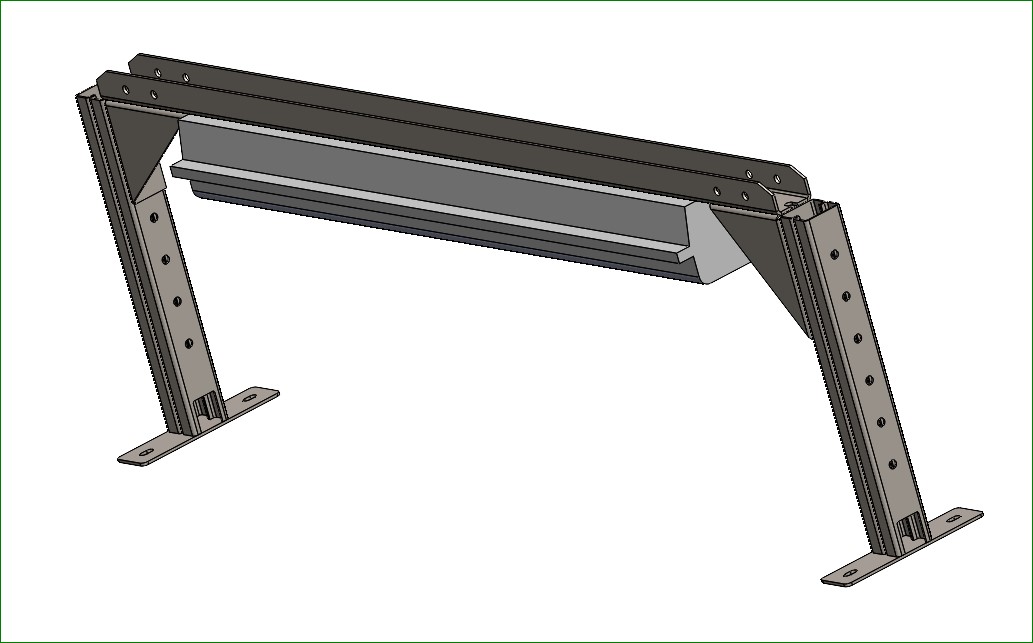

LED Work Lighting

High-output LED fixtures designed for the inside of welding booths. Proper illumination reduces eye fatigue and improves weld quality.

Titan LED Light Fixture
🔌

Electrical & Ventilation

Full electrical rough-in and ventilation packages available. We coordinate duct runs, panel connections, and motor wiring as part of a complete lab install.

Electrical Panel Installation
🪝

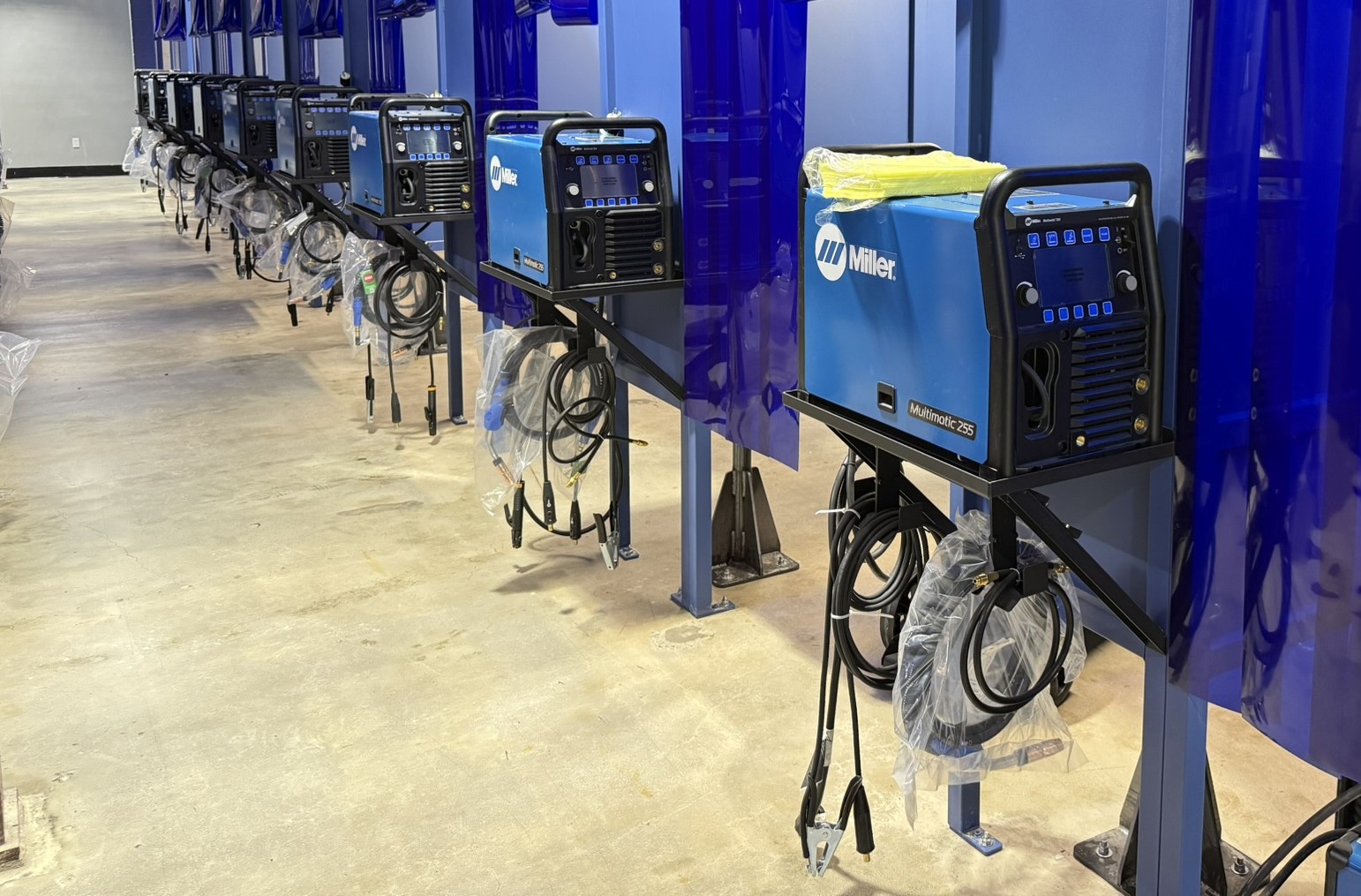

Cable & Hook Management

J-hooks and cable management systems to keep welding leads, gas hoses, and cords organized and off the floor — safer and more professional.

🪑

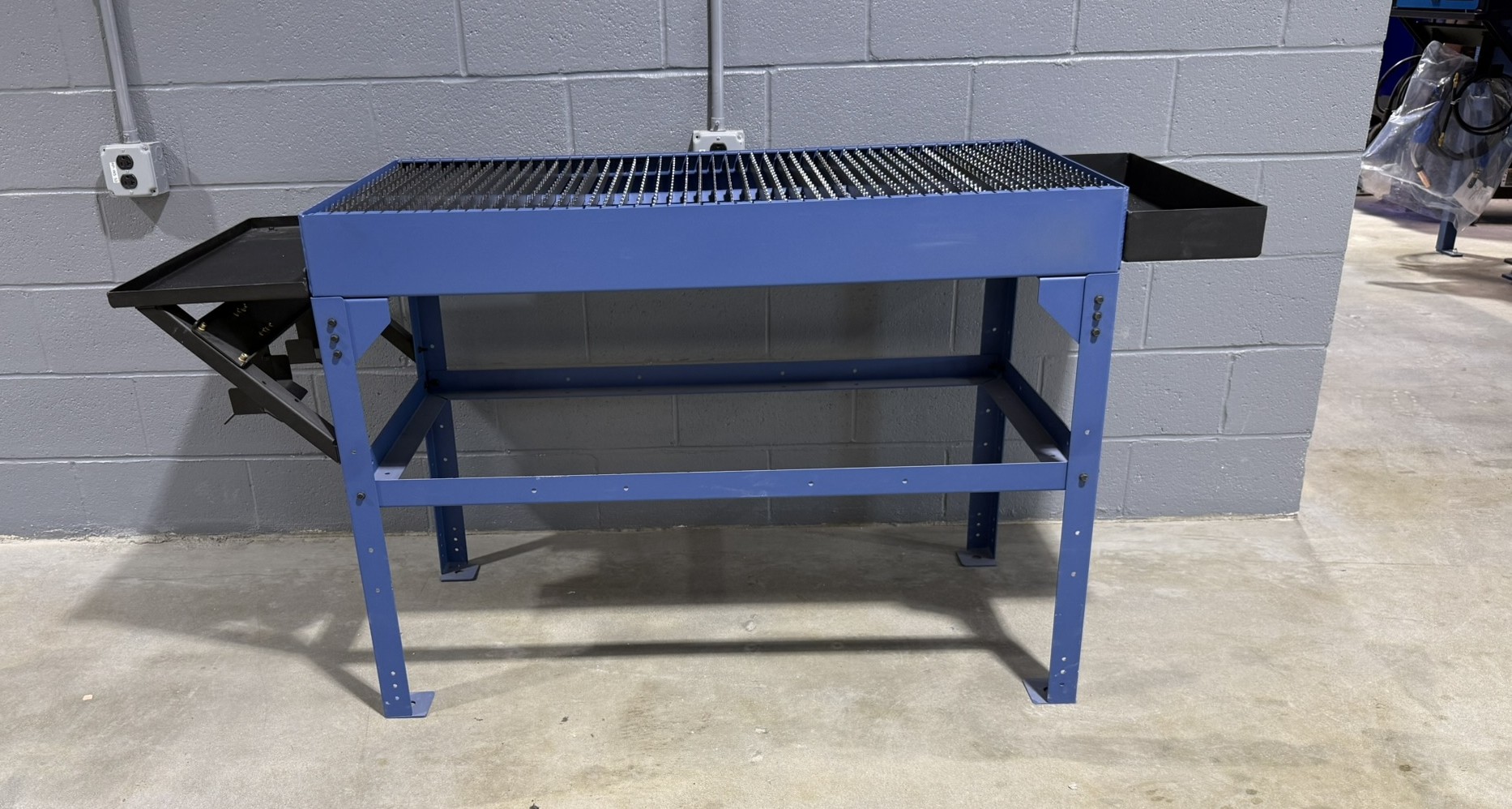

Welding Tables

Heavy-duty welding tables available in multiple heights to pair with any Titan booth. Steel construction, standard or custom sizes.

Not sure what you need? We'll help you spec the right package for your floor plan and budget.
