Product Lines
Our Equipment
From modular booths to complete ventilation systems — everything purpose-built for welding labs.
Most Popular

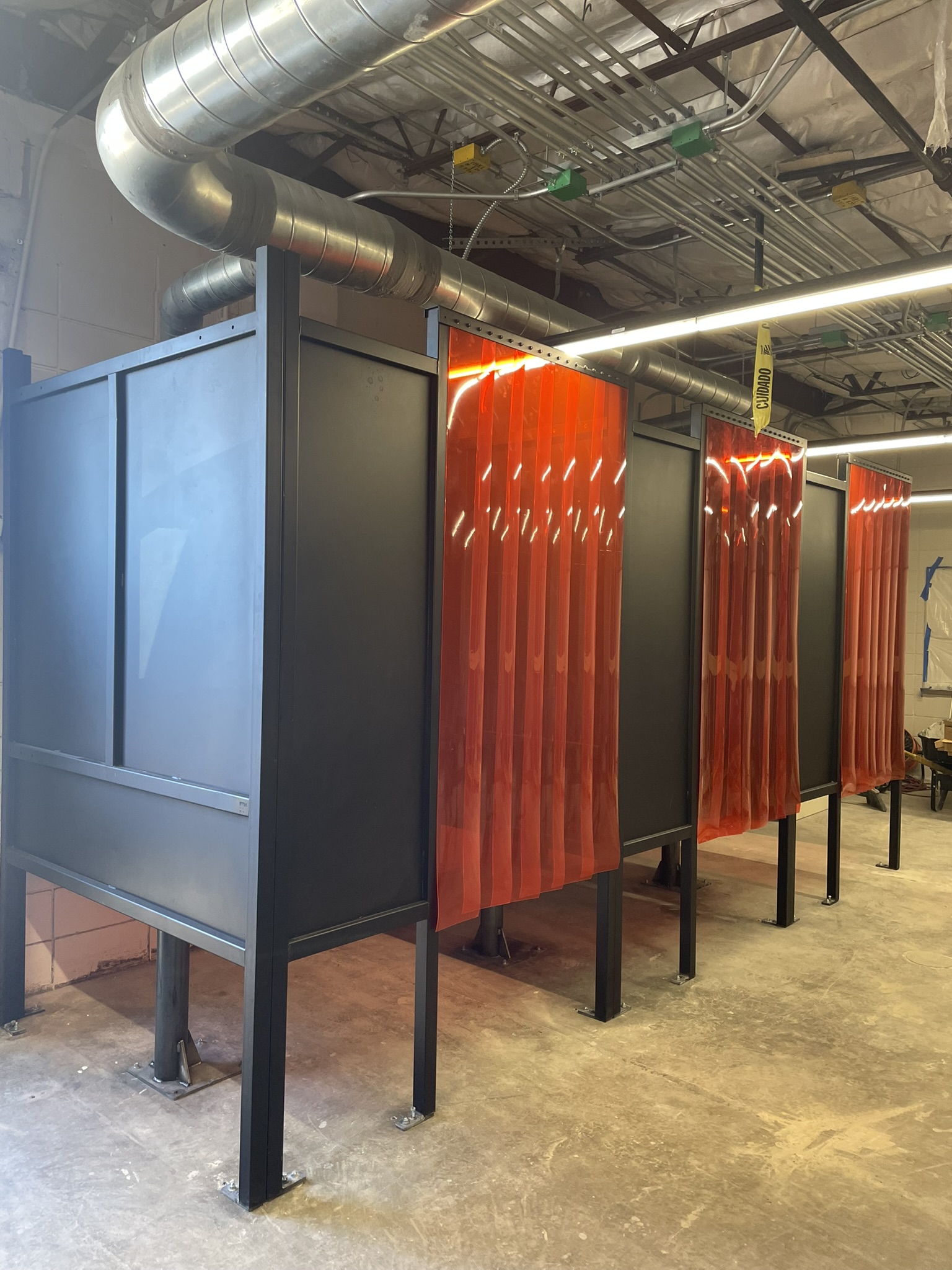

Titan BW Series
Standard welding booth with all-steel construction, adjustable legs, rear equipment shelf, and CPAI-84 curtain assembly. Custom dimensions available.
- Interior Size5 ft × 5 ft × 7.5 ft
- Panel Steel14 gauge
- Frame11 gauge, 2 in. sq. tube
- Finish5 powder coat colors

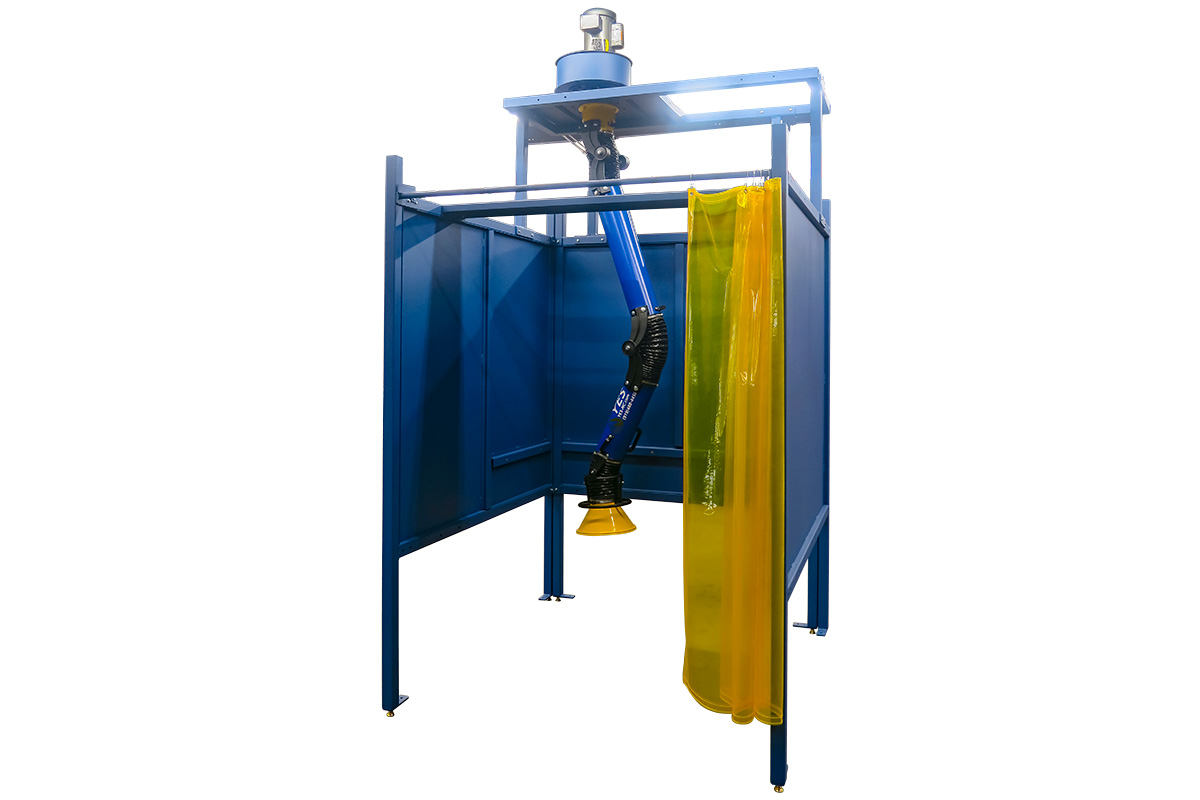

Titan FA Series
Fan arm welding booth with integrated 1.5-HP Baldor motor and hanging fume arm. Built-in weld smoke capture — no separate dust collector needed.
- Interior Size5 ft × 5 ft × 7.5 ft
- Overall Height12 ft 2 in. at motor
- Motor1.5-HP TEFC NEMA
- Airflow860 CFM @ 2.0 in. SP

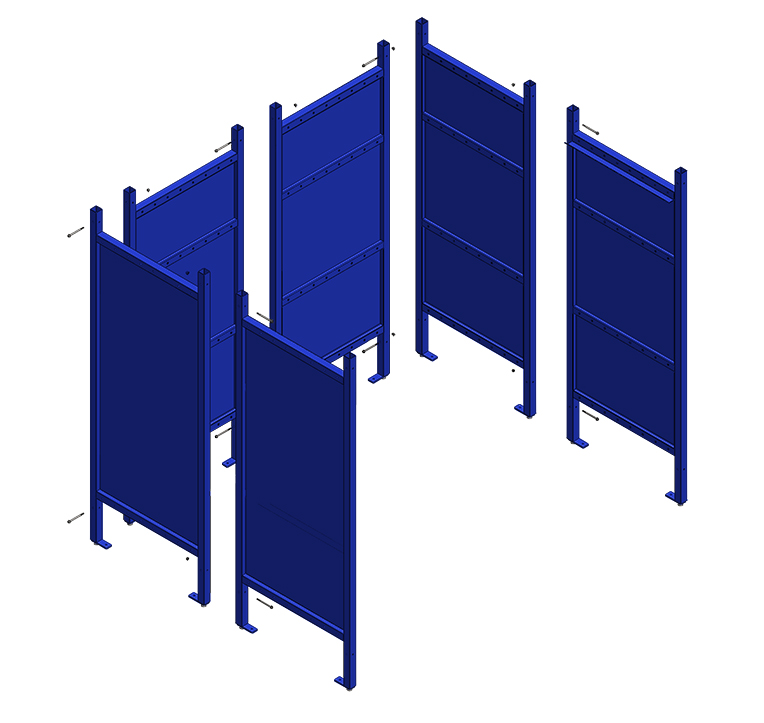

Titan MP Series
Modular panel system using 2 and 3 ft wide panels that assemble into any configuration. Half the weight of traditional panels — easier, safer installation.
- Standard Sizes6×5.8 ft or 5×4.8 ft
- Height7 ft 6 in. standard
- Panel Steel14 gauge
- ConfigurationsFully custom

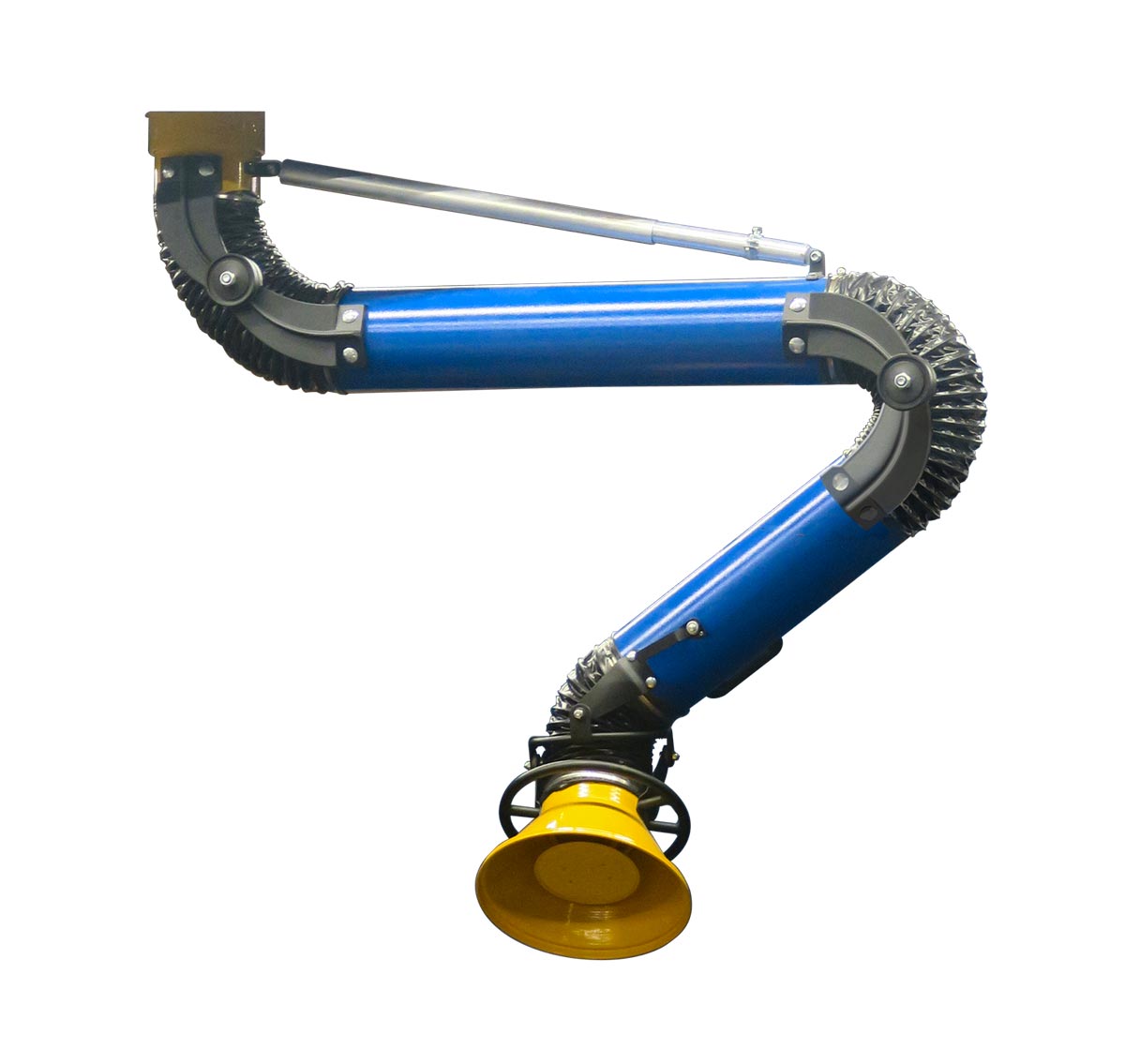

Hanging Fume Arm
Industrial hanging fume arm for weld smoke and grind dust source capture. All parts externally accessible — minimal maintenance required.
- ModelAH-0607
- Dimensions6 in. dia × 7 ft long
- Temp Rating200°F maximum
- Recommended CFM900 CFM per drop
